Fork protection is included.
This product is NOT suitable for frames with an anodized finish.

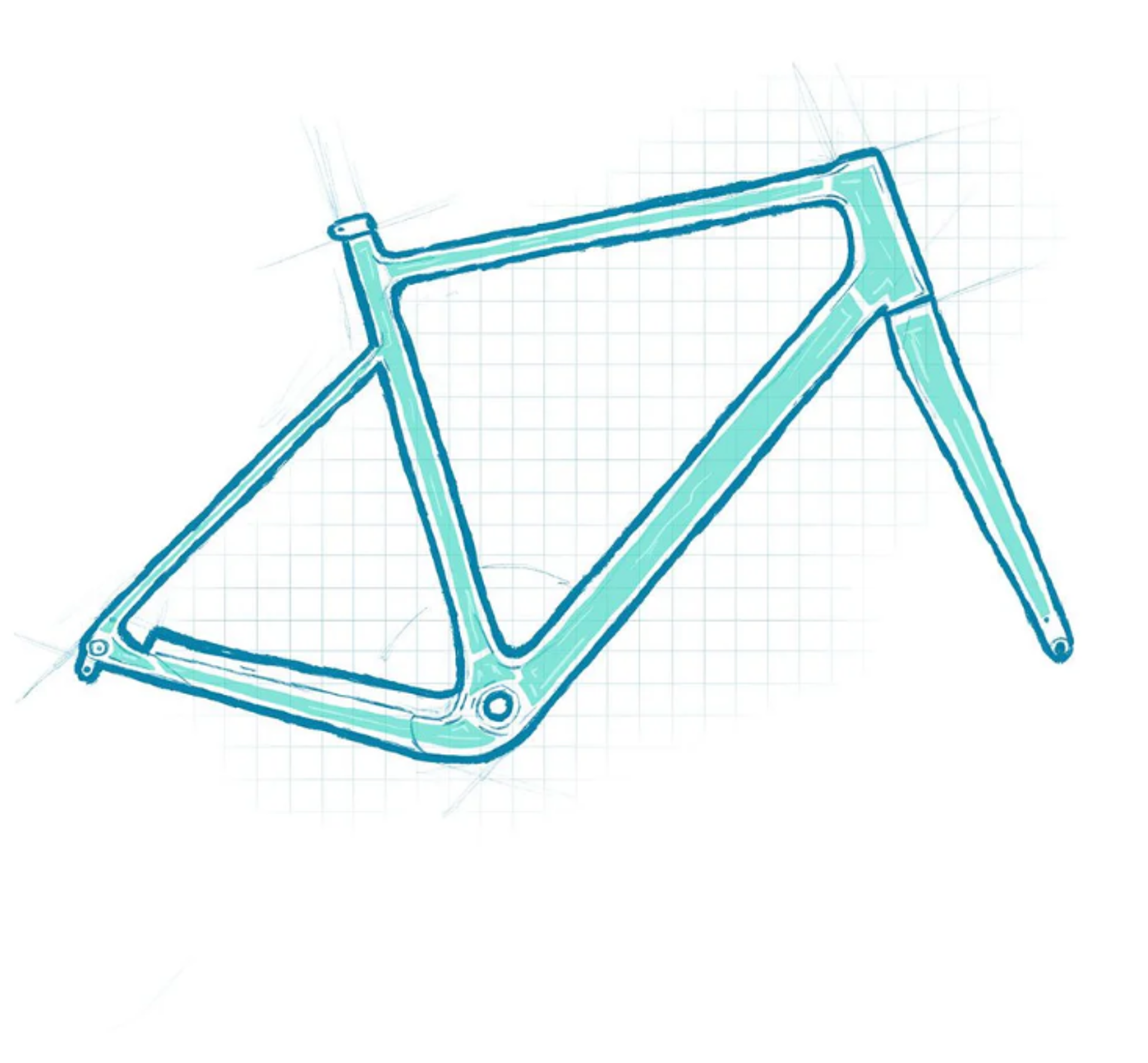

Dimensions of parts in mm
STANDARD KIT
Top tube – 585 x 141
Down tube – 585 x 180
1 x Back of seat tube – 585 x 65
2 x Head tube pieces - 148 x 60
2 x Seat stay – 585 x 50
2 x Chain stay – 387 x 65
2 x Fork cover straight fork legs 387 x 100 tapered to 60
6 x Large cable rub patches 60 x 60
STANDARD KIT With STRAP PROTECTION
Top tube – 585 x 141
Down tube – 585 x 180
1 x Back of seat tube – 585 x 65
2 x Head tube pieces - 148 x 60
2 x Seat stay – 585 x 50
2 x Chain stay – 387 x 65.
2 x Fork cover straight fork legs 387 x 100 tapered to 60
6 x Large cable rub patches 60 x 60
8 x Strap protection
Included in your kit:
- Application & removal guide
- Key sheet
- 1x Fitting Solution Concentrate 8ml
- 2x Lint Free Clothes
- 2x Pre-application Cleaning Wipes
- Squeegee
