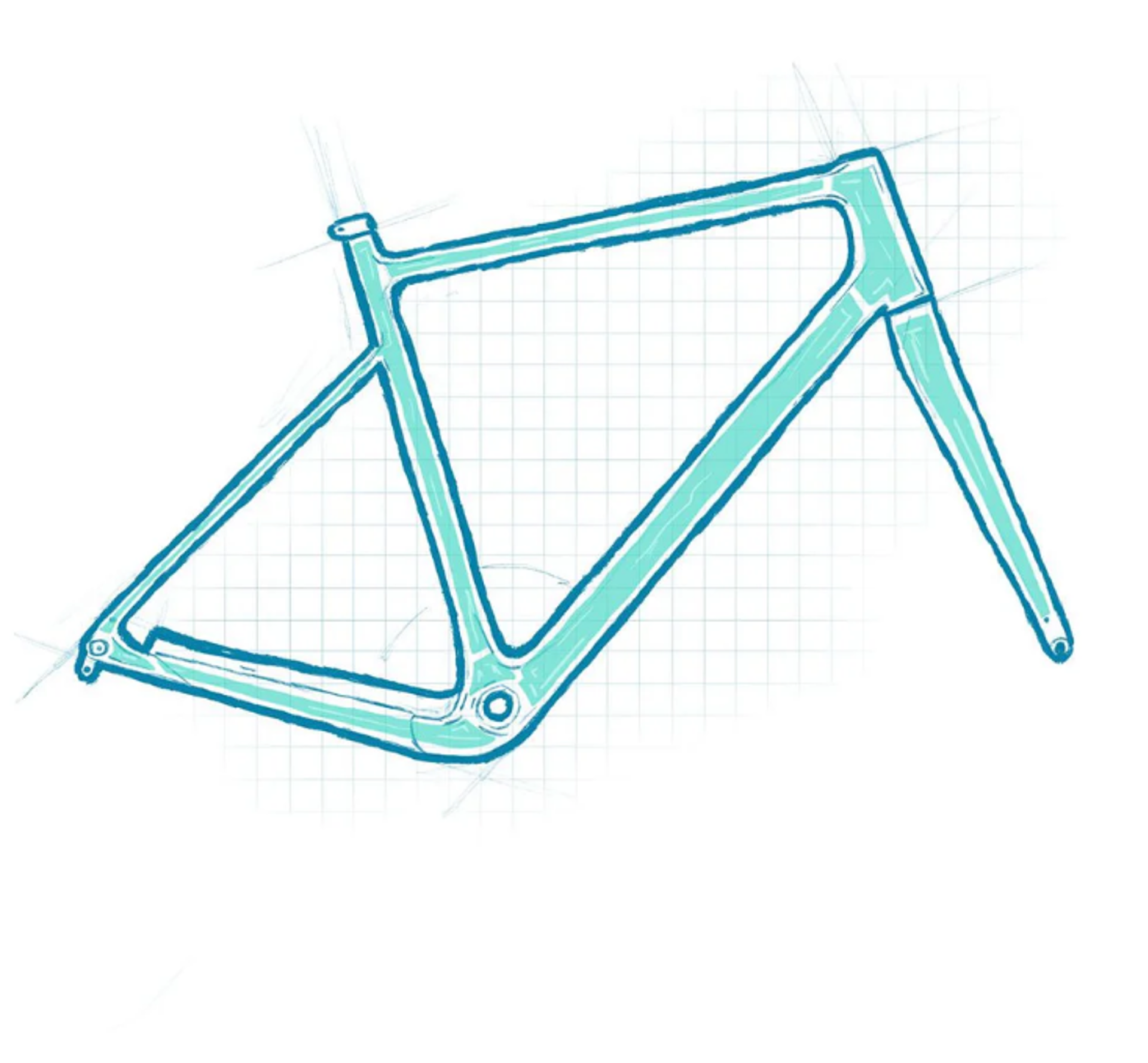

Dimensions of parts in mm
STANDARD KIT
Top tube – 500 x 70
Down tube – 500 x 70
2 x Back of seat tube – 330 x 40
2 x Seat stay – 500 x 25
2 x Chain stay – 330 x 45
2 x Fork cover straight fork legs 330 x 45 tapered
2 x Fork cover curved fork legs 346 x 40 tapered
4 x Small cable rub dots Dia 22
3 x Large cable rub dots Dia 28
3 x Rectangular cable rub patches 42 x 27
1 x Rectangular cable rub patches 100 x 35
MAX KIT
Top tube – 585 x 70
Down tube – 585 x 180
2 x Back of seat tube – 330 x 65
2 x Seat stay – 585 x 40
2 x Chain stay – 380 x 80
2 x Fork cover straight fork legs 387 x 100 tapered to 45
4 x Small cable rub dots Dia 22
3 x Large cable rub dots Dia 28
6 x Rectangular cable rub patches 42 x 27
2 x Square cable rub patches 60 x 60
1 x Rectangular cable rub patches 165 x 60
Included in your kit:
- Application & removal guide
- Key sheet
- 1x Fitting Solution Concentrate 8ml
- 2x Lint Free Clothes
- 2x Pre-application Cleaning Wipes
- Squeegee
